104010006R00 Spray While Seeding Kit: mounting instructions
Upgrade kit: Spray While Seeding Kit
⚠️ Please note that the Spraying While Seeding Kit is:
- only compatible/recommended for 450mm and 500mm row distance. Other distances could cause interference with rear wheels!
- only allowed for seeding position, as there could be interference with rear wheels in weeding position.
It is possible to retrofit the Spray While Seeding Kit on any existing FD20 robot, that has + Spray.
The tools you need for completing the task are:
- 2x 13mm spanner or socket wrench
- 10 mm spanner or socket wrench
- Sidecutter

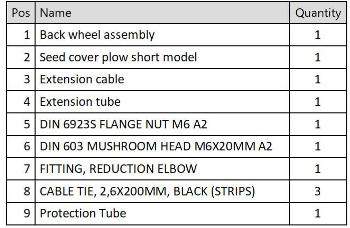

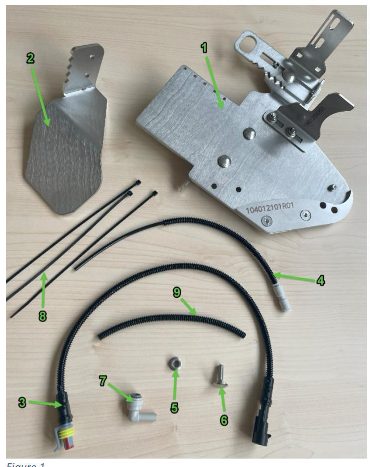

Content of the kit
RETROFITTING PROCEDURE
Throughout the procedure, please handle the +SPRAY tubes with care as they might contain residues of chemicals!
STEP 1 - Dismantle back wheel and console/scraper
Two types of back wheel.

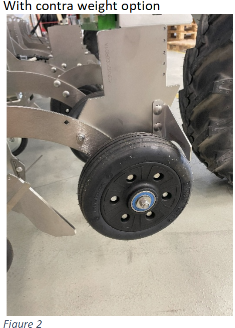

Figure 2 With additional weight bracket: Figure 2 Only 1x M6 bolt+ Nut
Figure 3 Without additional weight bracket: Figure 3 2x M6 bolt+ Nut

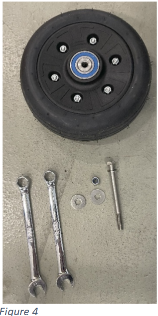

Figure 4 Keep wheel, bolt, nut and washer. They need to be mounted again later
STEP 2 - Mount new Rear wheel bracket for spraying

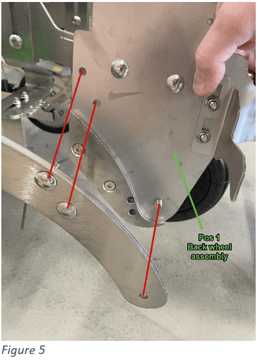

Figure 5 2 x bolts M6x20 + Nuts on the back side (not visible)
If previous back wheel is mounted, with additional weight bracket, use the extra bolt and nut that comes with the "Spray while seeding" kit !

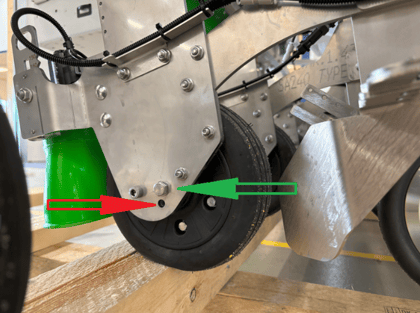

Figure 6 Upper hole (marked with Green arrow) for mounting the back wheel after mounting the new bracket. Be Aware ! There are 2 holes for the wheel to be mounted!. Upper hole is Standard, lower hole (Red Arrow) is for when Shallow seeding cant be reached with normal settings!
STEP 3 - Replace the “Seed cover Plow”
The seed cover plow needs to be changed to a shorter model. The standard, long model will hit the wheel.

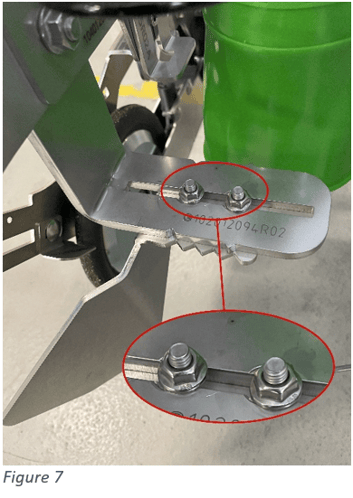

Figure 7 Loosen nuts and replace Plow with new short model (comes with the Spray while seeding kit) Reuse bolts and nuts

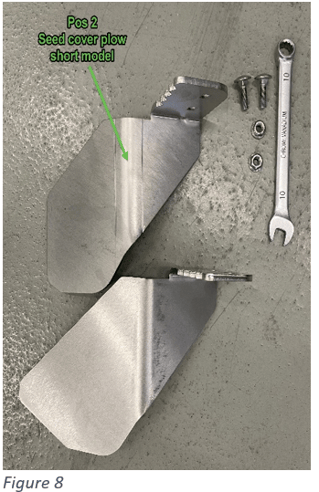

Figure 8 Change to short model (comes with the Spray while seeding kit) Bolts + Nut to be reused
STEP 4 - Move the nozzle

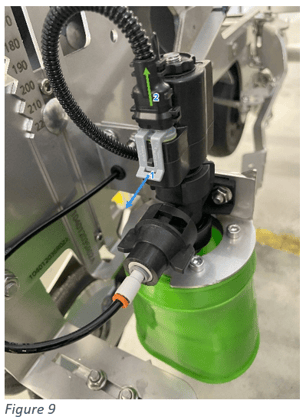

Figure 9 Cable dismount.
Pull-out grey clip, on plug and pull the plug up and out, may sit tight

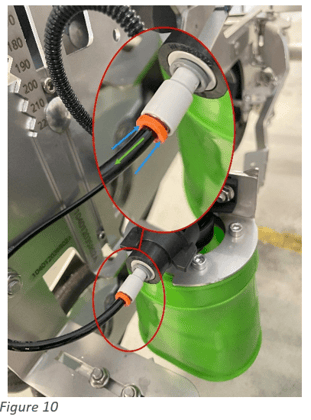

Figure 10 Tube dismount.
CAUTION 👇
The tube might contain residues of chemical products.
Press the orange ring and pull-out tube

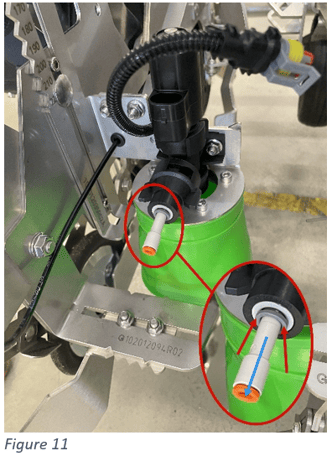

Figure 11 Tube connecter dismount.
Press on Gray ring on nozzle and pull-out reduction fitting.
Keep reduction fitting must be reused later

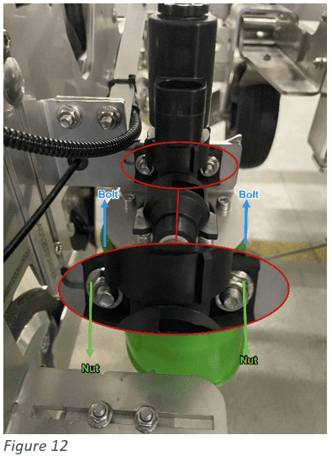

Figure 12 Nozzle dismount.
Loosen 2x M6 nut from bolts
Take of bolts, nozzle and spray screen of !Nozzle and spray screen bolts and nuts to be remounted again!
STEP 5 - Reassemble the nozzle to the new bracket

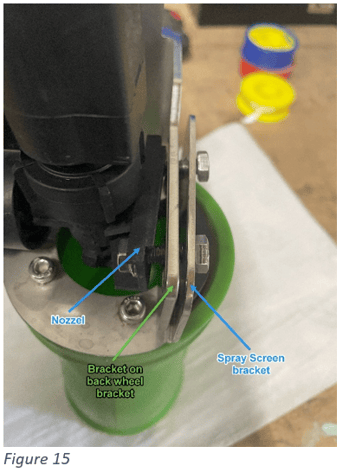

Figure 1 Nozzle set.
Nozzle and spray screen in the right way

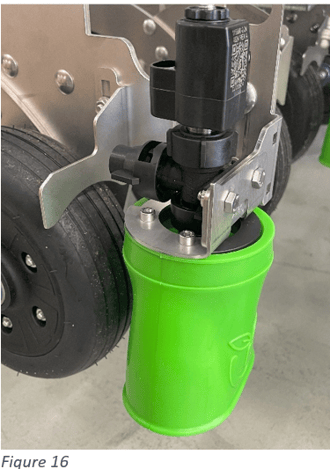

Figure 16 Nozzle set.
Nozzle set Reassemble correct

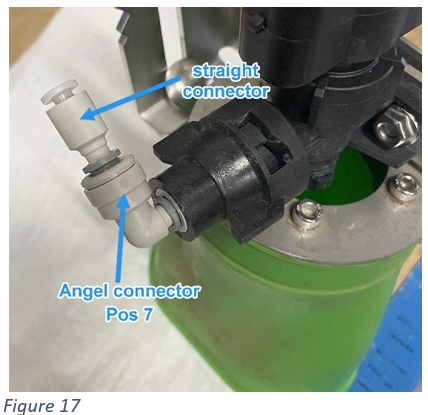

Figure 17 Tube connecter
Mount angle tube connector (Pos 7) to nozzle
Add the straight tube connector in to the angle connector

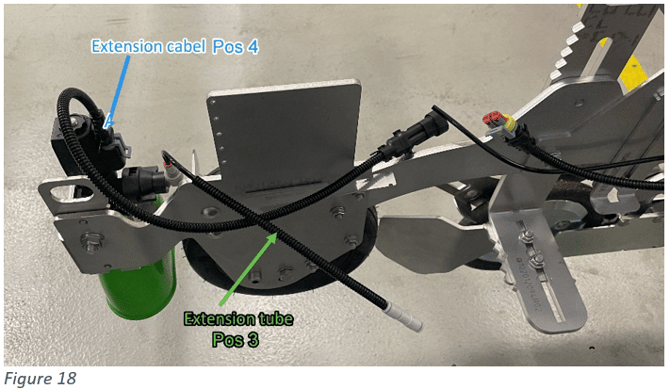

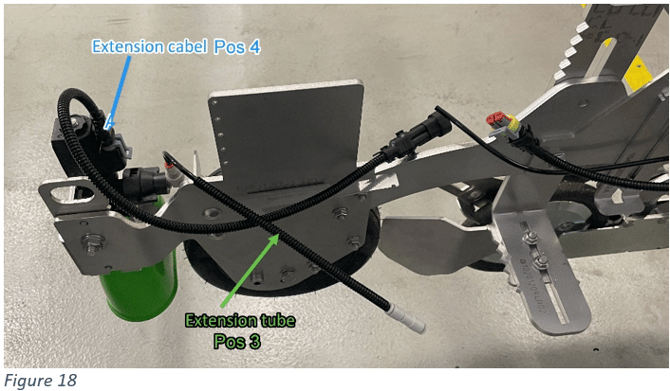

Figure 18 Extension cable and tube to be inserted into the Nozzle

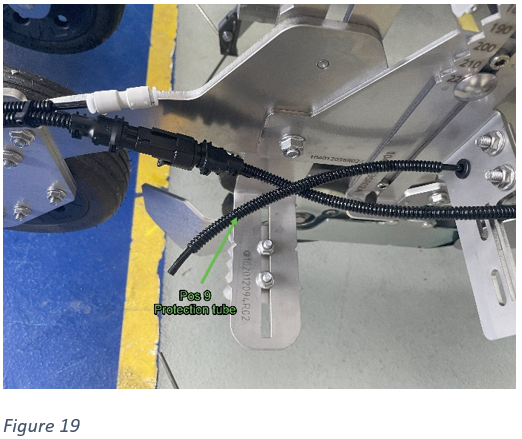

Figure 19 Protection tube (Pos 9) over the presser tube on the +Spray system

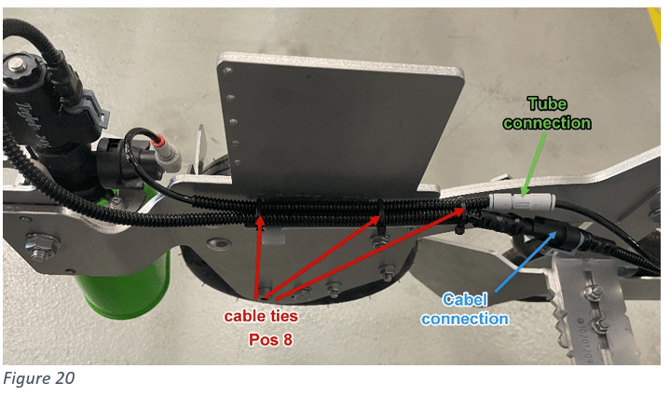

Figure 20 Extension cable and tube to be connected to the existing cable and tube.
Cable and tube to be attached to the bracket with cable ties (Pos 8)
STEP 6 - Calibration

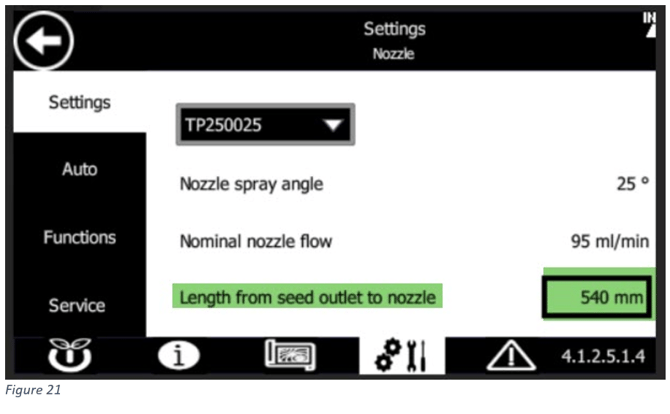

Figure 21 Settings
Set HMI "Length from seed outlet" to 540mm
Run calibration test after mount to ensure proper function - See +SPRAY User Manual
Figure 22 moving back the nozzle to side position
If moving back the nozzle to the side position.
Dismount extension cable and extension tube to prevent contamination.
