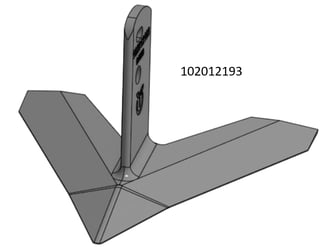

Content of A-share Kit
A-share Kit (102011072) includes the A-share and a package with a bracket and the necessary nuts and bolts.
Content of L-share Kit
102011111: L-share Kit (incl 102012195 left 45 deg)
102011112: L-share Kit (incl 102012197 right 45 deg)
102011113: L-share Kit (incl 102012216 left 20 deg)
They all include an L-share blade and a package with a bracket and the necessary nuts and bolts.
As seen above, the necessary bracket and nuts and bolts are made into a package and included in all the kits.

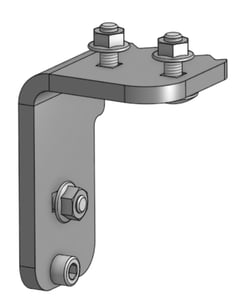

Bracket and bolt acc L-share and A-share (Part no: 102011110)
-
1 x 102012203 - Bracket
-
1 x 603060164 - DIN603 M6 x 16
-
2 X 603060204 - DIN603 M6 x 20
-
3 x 6923S064 - DIN9623-S M6
-
1 x 912060064 - DIN912 M6 x 6
OBS. One of these brackets should be ordered separately
It is important to order one of these four brackets based on the desired place you would like to attach the tool on the robot.

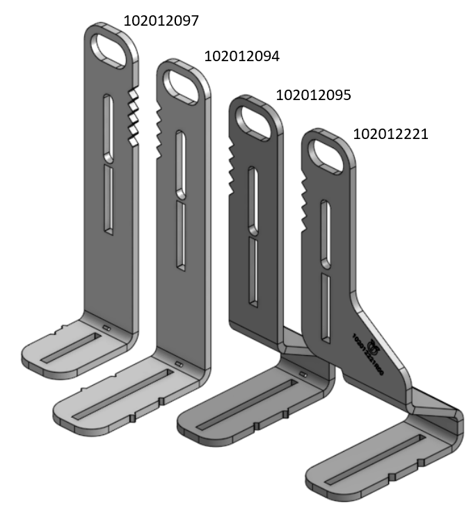

Here are the four types of brackets to fit the shares to the trailer with part numbers:

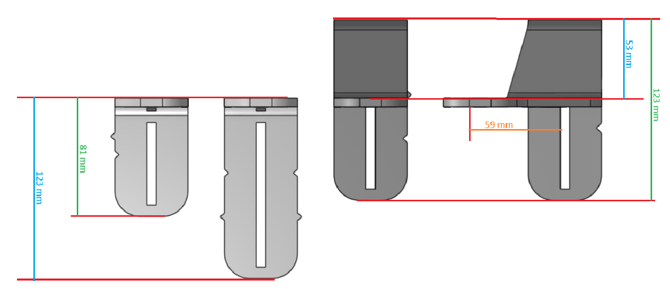

The different measurements of the brackets can be seen here:
All have the same total height of 258 mm.
When choosing the bracket keep in mind that all L-shares have a working width of 145mm and the A-share has a working width of 160 mm.

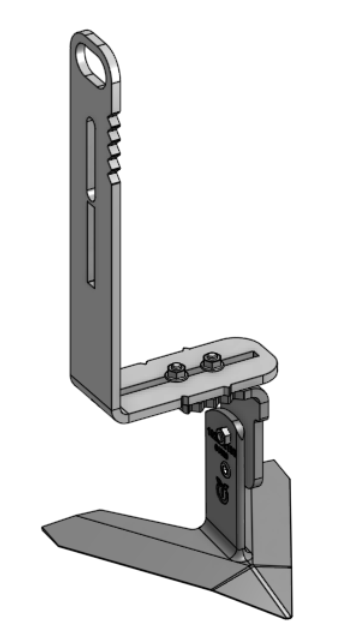

As an example, the final assembly fitted with an A share looks like this, ready to be fitted to a trailer:
