POWER BANK (3/3): electrical connections

Schemes for ELECTRICAL CONNECTIONS of the power bank add-on, based on the specific versions of FD20

PDF version of the guideline



After you have assembled the structural part of the power bank (Power bank - ASSEMBLY guideline), you need to make sure all the wires are properly connected.

Each of the three FD20 versions require a specific wiring to make sure the add-on is installed correctly.

• Model year 2022 DOES NOT require any additional part
• Model year 2021 requires 1 pcs of 2050002
• Model year 2020 requires 2 pcs of 2050002, 1 pcs of 2050004
• Model year 2020 upgraded with lithium batteries requires 1 pcs of 2050002, 2 pcs of 2050004

>> Please remember to ALWAYS turn off the main switch, when connecting or disconnecting batteries! <<



Below, we have attached the connection schemes for each of the three model year, BEFORE and AFTER the power bank has been installed.

Please pay attention to the schemes, as a misusage of these instruction could cause damage to your FD20.



---

FD20 model year 2022 with Lithium battery packs

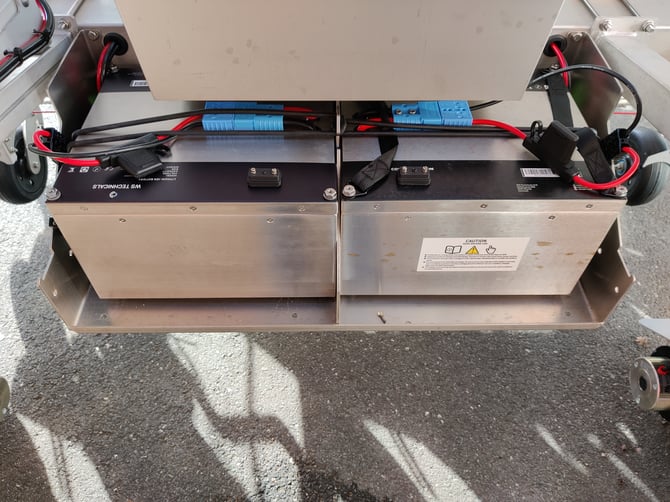

Here is the correct scheme BEFORE the power bank is mounted on model year 2022:

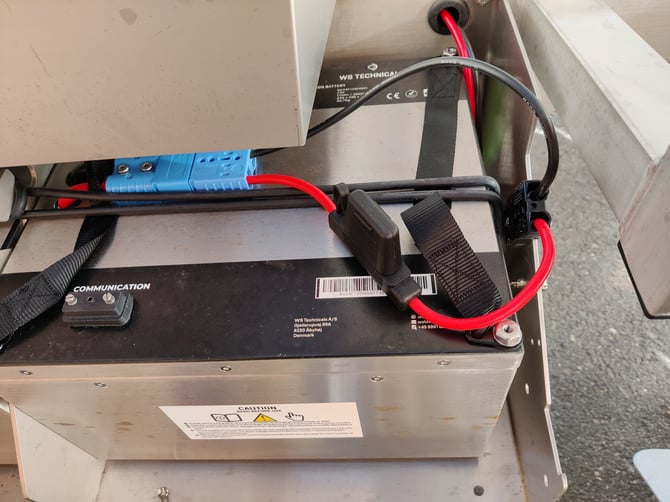

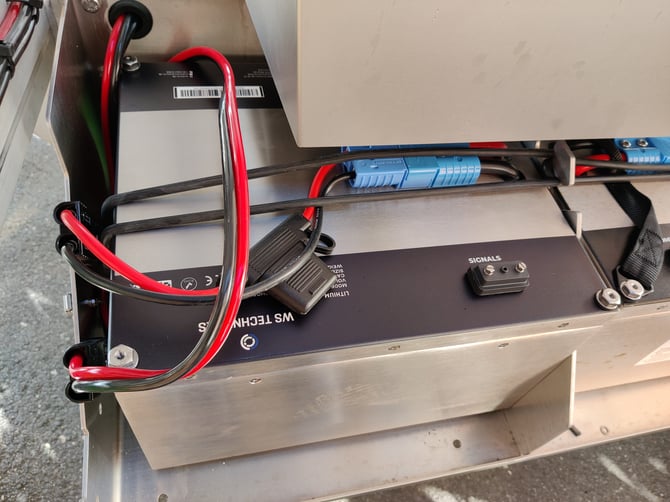

Here is the correct scheme AFTER the power bank is mounted on model year 2022:



















---

FD20 model year 2021 with Lithium battery packs

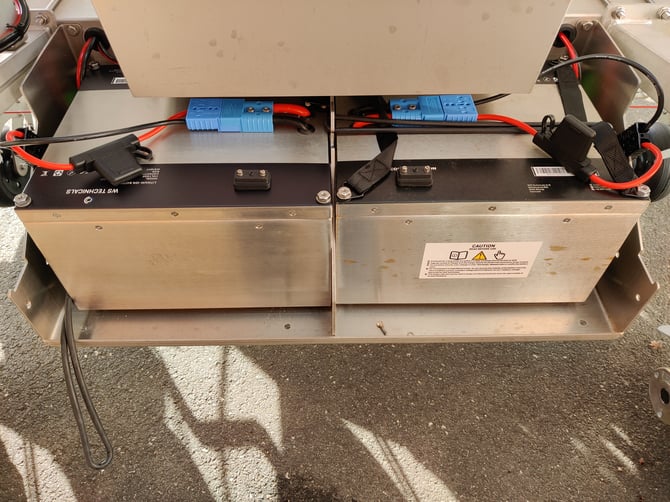

Here is the correct scheme BEFORE the power bank is mounted on model year 2021:

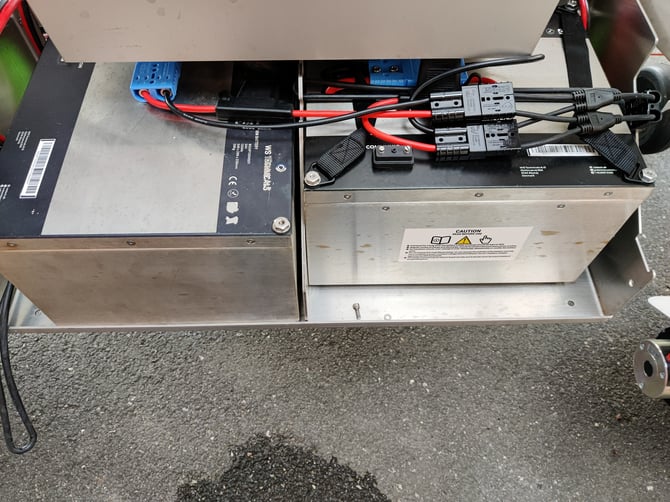

Here is the correct scheme AFTER the power bank is mounted on model year 2021:













---

FD20 model year 2020 with AGM battery packs

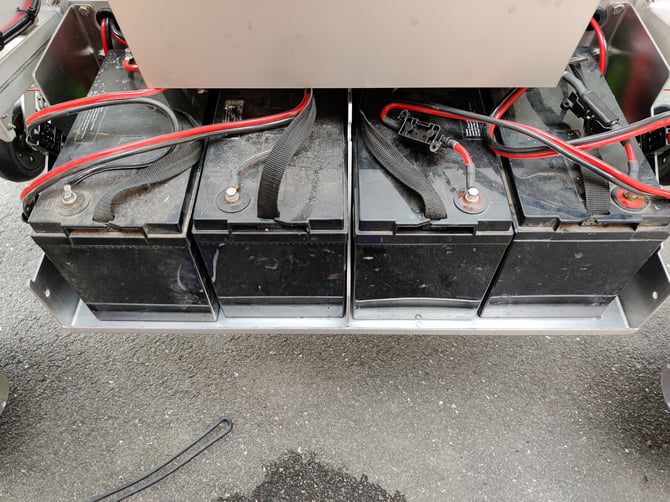

Here is the correct scheme BEFORE the power bank is mounted on model year 2020:

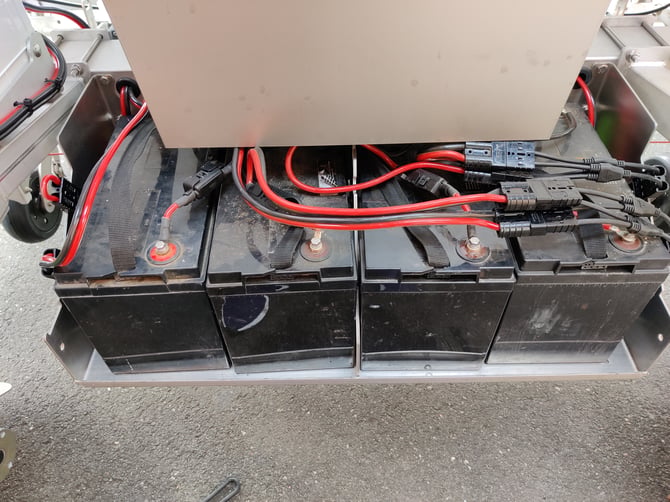

Here is the correct scheme AFTER the power bank is mounted on model year 2020:

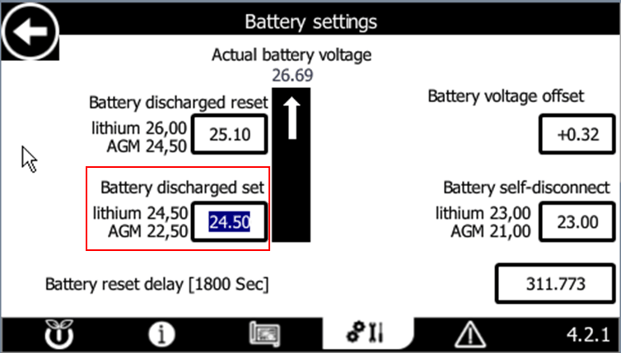

Please, when mounting the battery pack to AGM equipped robots, remember to change the "BATTERY DISCHARGED SET" value to 24.5V.
